FALCAM GEARTREE Boom Arm 2746

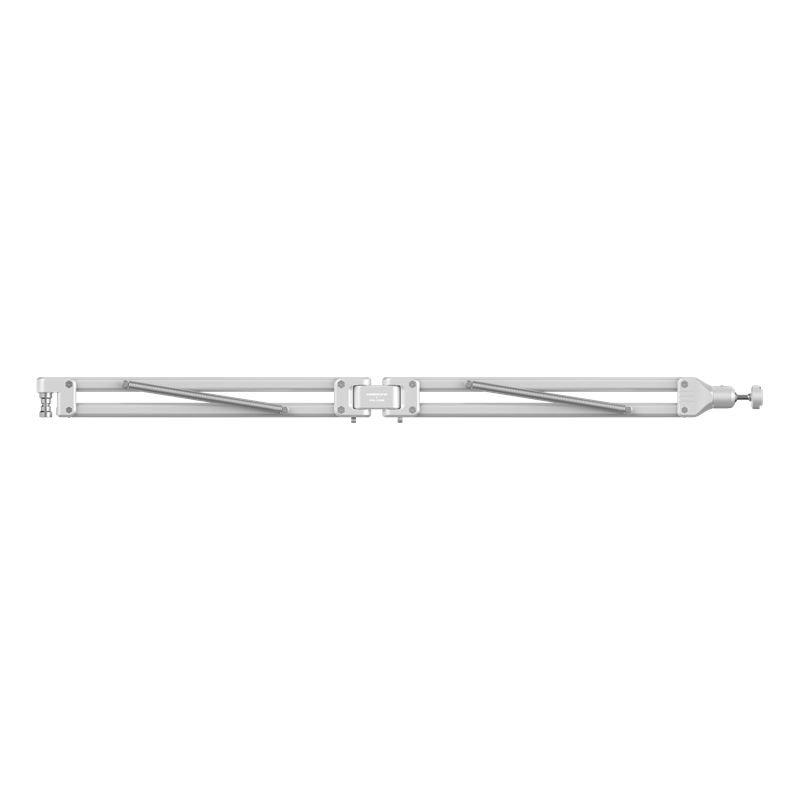

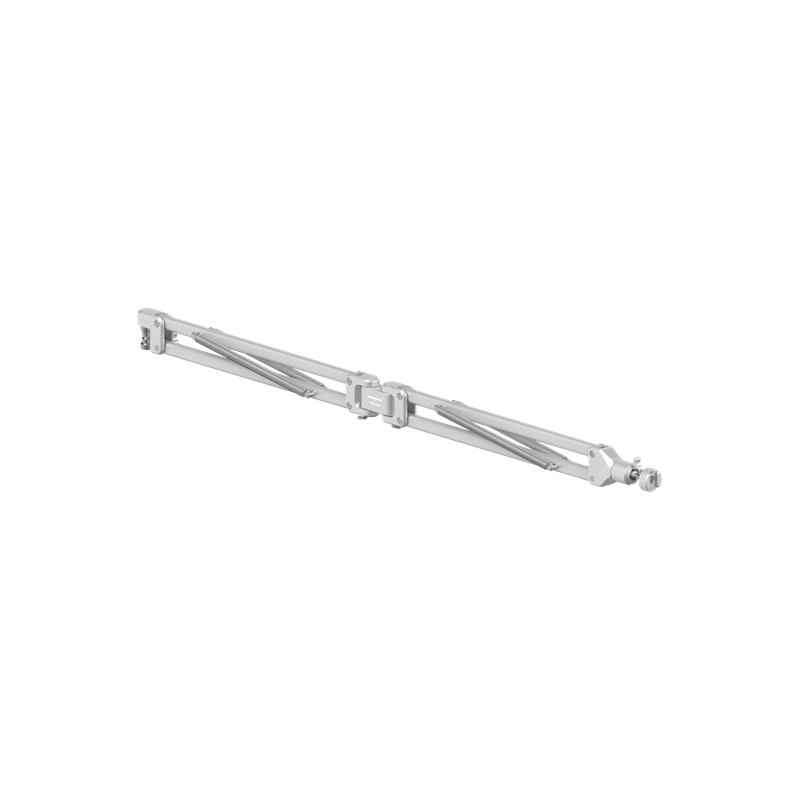

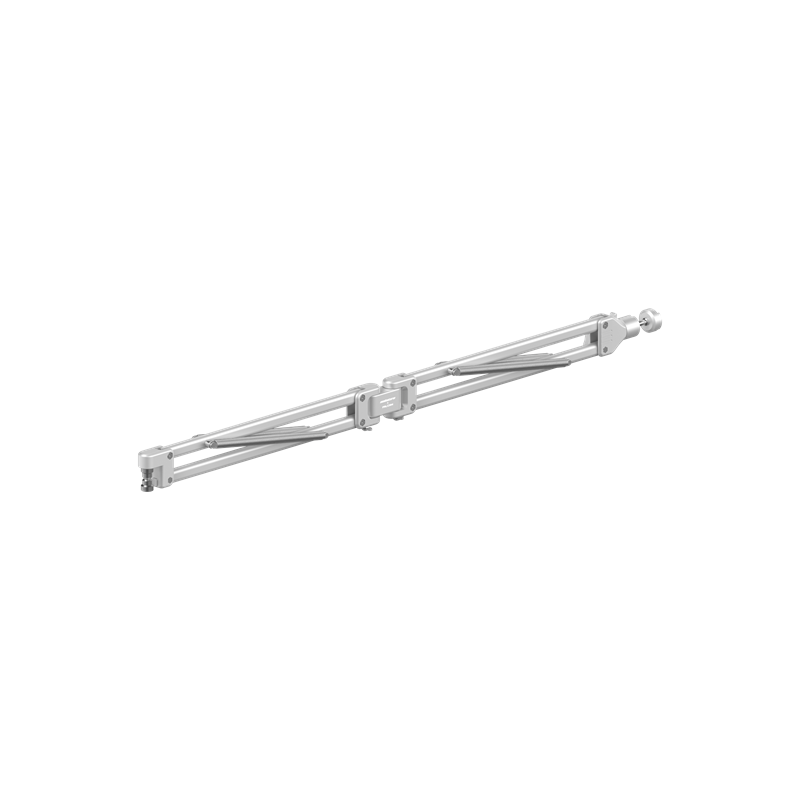

FALCAM GEARTREE Triangle Extension Arm Triangular shaped arm, only for the floor-to-ceiling stand, connected through two adapters, with two staggered expansion holes at the end, 30kg load capacity, non-adjustable length.   Used to hang heavy equipment such as professional lighting   Specifications   Color Silver White Material Aluminium Alloy Dimension 820*290*60mm Weight 1.7kg Packing Weight 1.9kg Parts Triangle Extension Arm*1 M6*20 Locking screw*2 M6*8 Stainless steel taper screw*2 H3 Hex Key*1 Magic strap*1

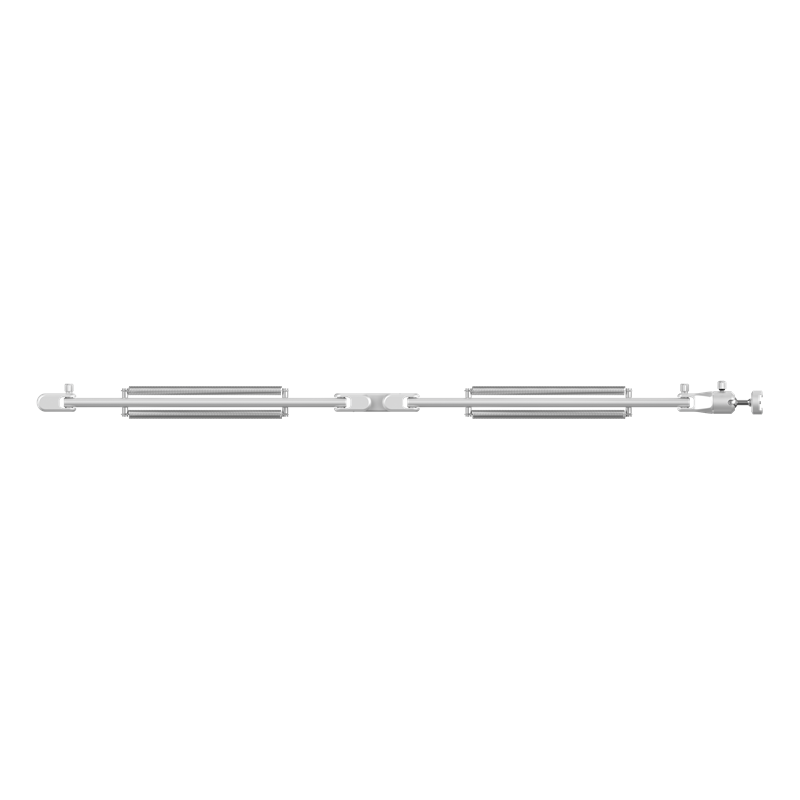

FALCAM GEARTREE Full Motion Swivel Arm It is used to install 4-way pan, VESA mount adapter, 15.8mm stud with 1/4 or 3/8 screw, with air spring, vertical and horizontal expansion holes at the end, after adjusting the preload, realizing a wide range of arbitrary suspending. Load range: 2.0-9.0kg, Height adjustment range: about 30cm.   Specifications Color Silver White Material Aluminium Alloy Dimension 420*160*60mm Weight 1014.5g Packing Weight 1206.5g Parts Full Motion Swivel Arm*1 M6*20 Locking screw*1 M6*8 Stainless steel taper screw*1 H3 Hex Key*1 H5 Hex Key*1 Manual*1

FALCAM GEARTREE Basic Extension Grip Arm With an extension hole at the end, and connected to adapters through a 15.8mm stud, can be stacked and used to extend various types of equipment to broaden the shooting range, but stacking usage will lengthen the torque and make the load range smaller. Stacking more than 3 is not recommended. One piece basic extension grip arm load weight range : 0-20kg。   Specifications Color Sliver White Material Aluminium Alloy Dimension 270*85*55mm Weight 358.2g Packing Weight 432g Parts Basic Extension Grip Arm*1 M6*20 Locking screw*1 M6*8 Stainless steel taper screw*1 POM Gasket (Diameter35 mm)*1 POM Gasket (Diameter 40 mm)*1 H3 Hex Key*1 Magic strap*2 Manual*1

FALCAM GEARTREE 3-Way Roll Head   Way roll head with 4 freedoms (Pan, tilt, roll, and tighten the knob to fix the point then can be swung left and right), is available for products of the F38 and F22 cages. The maximum load capacity is about 3kg.   Three-axis rotation is available, it can be adjusted freely and used to quickly switch among horizontal, overhead or vertical shooting.   Specifications  Color Silver Material Aluminium Alloy Dimension 150*140*75mm Weight 348g Packing Weight 443g Parts Hex key *2

For the first time, the F22 series adopted a quick-release mount of 22mm, making it smaller and lighter. Not only follows the design of mortise and tenon structure which leads to "a push to install, a press to remove", the F22 series also includes a complete set of quick release system for common equipment accessories. Speed it up! And enjoy your fully speeded-up and creative shooting!
